Central Carolina Scale sells and services Intercomp Cargo Scales
in the Central Carolina Scale Electronic Catalog

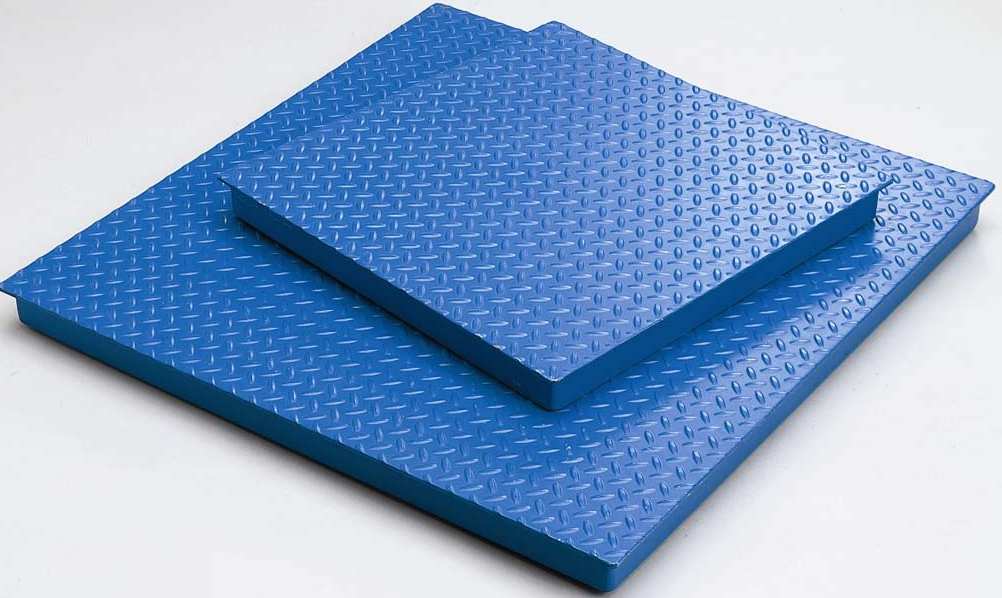

Intercomp Low Profile
CW500 Platform Scale
Install above or below ground for traditional method of weighing
pallets. Requires GP1000, GP1200
or customer supplied indicator. Ramps are optional.
|
Part
#
|
Description
|
Capacity
|
Weight
|
|
100551
|
2' x 2' CW50022-1 |
1k |
100 lb/46 kg
|
|
100618
|
2' x 2' Steel Ramp |
|
65 lb/30 kg
|
|
100552
|
2' x 2' CW50022-2 |
2k |
100 lb/46 kg
|
|
100618
|
2' x 2' Ramp |
|
65 lb/30 kg
|
|
100553
|
3' x 3' CW50033-2 |
2k |
175 lb/79 kg
|
|
100619
|
3' x 3' Ramp |
|
125 lb/56 kg
|
|
100554
|
3' x 3' CW50033-5 |
5k* |
175 lb/79 kg
|
|
100619
|
3' x 3' Ramp |
|
125 lb/56 kg
|
|
100555
|
4' x 4' CW50044-5 |
5k* |
600 lb/272 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100556
|
4' x 4' CW50044-10 |
10k* |
600 lb/272 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100557
|
4' x 5' CW50045-5 |
5k* |
800 lb/363 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100558
|
4' x 5' CW50045-10 |
10k* |
800 lb/363 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100559
|
4' x 6' CW50046-5 |
5k* |
900 lb/409 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100560
|
4' x 6' CW50046-10 |
10k* |
900 lb/409 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100561
|
5' x 5' CW50055-5 |
5k* |
1000 lb/454 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100562
|
5' x 5' CW50055-10 |
10k* |
1000 lb/454 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100563
|
5' x 7' CW50057-5 |
5k |
1200 lb/545 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100564
|
5' x 7' CW50057-10 |
10k |
1200 lb/545 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100565
|
5' x 7' CW50057-20 |
20k |
1500 lb/681 kg
|
|
100630
|
5' x 5' Ramp |
|
340 lb/155 kg
|
|
100566
|
4' x 8' CW50048-5 |
5k |
1500 lb/681 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100567
|
4' x 8' CW50048-10 |
10k |
1500 lb/681 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100568
|
6' x 8' CW50068-10 |
10k |
1870 lb/850 kg
|
|
100646
|
6' x 3' Ramp |
|
260 lb/118 kg
|
|
100569
|
6' x 6' CW50066-5 |
5k |
1200 lb/545 kg
|
|
100646
|
6' x 3' Ramp |
|
260 lb/118 kg
|
|
100570
|
6' x 6' CW50066-10 |
10k |
1200 lb/545 kg
|
|
100646
|
6' x 3' Ramp |
|
260 lb/118 kg
|
|
100571
|
4' x 4' CW50044-20 |
20k Superscale |
900 lb/409 kg
|
|
100621
|
4' x 4' Ramp |
|
220 lb/100 kg
|
|
100572
|
5' x 5' CW50055-20 |
20k Superscale |
1087 lb/493 kg
|
|
100645
|
5' x 4' Ramp |
|
270 lb/122 kg
|
|
100573
|
4' x 6' CW50046-20 |
20k Superscale |
1067 lb/484 kg
|
|
100621
|
4' x 4' Ramp |
|
220 lb/100 kg
|
* NTEP #94-038 - Approved models are marked with an *asterisk
Also Available
|
Stainless Steel
|
|
Part
#
|
Description
|
Capacity
|
Weight
|
|
100574
|
2' x 2' CW50022-1SS |
1k
|
100 lb/46 kg
|
|
100647
|
2' x 2' Stainless Steel Ramp |
|
65 lb/30 kg
|
|
100575
|
2' x 2' CW50022-2SS |
2k
|
100 lb/46 kg
|
|
100647
|
2' x 2' Ramp |
|
65 lb/30 kg
|
|
100576
|
3' x 3' CW50033-2SS |
2k
|
175 lb/79 kg
|
|
100648
|
3' x 3' Ramp |
|
125 lb/56 kg
|
|
100577
|
3' x 3' CW50033-5SS |
5k*
|
175 lb/79 kg
|
|
100648
|
3' x 3' Ramp |
|
125 lb/56 kg
|
|
100578
|
4' x 4' CW50044-5SS |
5k*
|
300 lb/136 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100579
|
4' x 4' CW50044-10SS |
10k*
|
400 lb/181 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100580
|
4' x 5' CW50045-5SS |
5k*
|
375 lb/170 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100581
|
4' x 5' CW50045-10SS |
10k*
|
425 lb/193 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100582
|
4' x 6' CW50046-5SS |
5k*
|
600 lb/272 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100583
|
4' x 6' CW50046-10SS |
10k*
|
600 lb/272 kg
|
|
100649
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100584
|
5' x 5' CW50055-5SS |
5k*
|
600 lb/272 kg
|
|
100633
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100585
|
5' x 5' CW50055-10SS |
10k*
|
600 lb/272 kg
|
|
100633
|
5' x 3' Ramp |
|
200 lb/91 kg
|
* NTEP #94-038 - Approved models are marked with an *asterisk
|
*Versadeck NTEP:
|
|
Part
#
|
Description
|
Capacity
|
Weight
|
|
100586
|
30 x 30" CW5003030-2-LT |
2k
|
125 lb/56 kg
|
|
100632
|
30 x 30" Ramp |
|
75 lb/34 kg
|
|
100587
|
4' x 4' CW50044-5-LT |
5k*
|
220 lb/100 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100588
|
4' x 4' CW50044-10-LT |
10k*
|
270 lb/122 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100589
|
4' x 5' CW50045-5-LT |
5k*
|
275 lb/125 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100590
|
4' x 5' CW50045-10-LT |
10k*
|
325 lb/147 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100591
|
4' x 6' CW50046-5-LT |
5k*
|
330 lb/150 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100592
|
4' x 6' CW50046-10-LT |
10k*
|
380 lb/172 kg
|
|
100643
|
4' x 3' Ramp |
|
165 lb/75 kg
|
|
100593
|
5' x 5' CW50055-5-LT |
5k*
|
345 lb/156 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
|
100594
|
5' x 5' CW50055-10-LT |
10k*
|
395 lb/179 kg
|
|
100644
|
5' x 3' Ramp |
|
200 lb/91 kg
|
Call (919) 776-7737 for more information or to place
an order
